CAD conversion

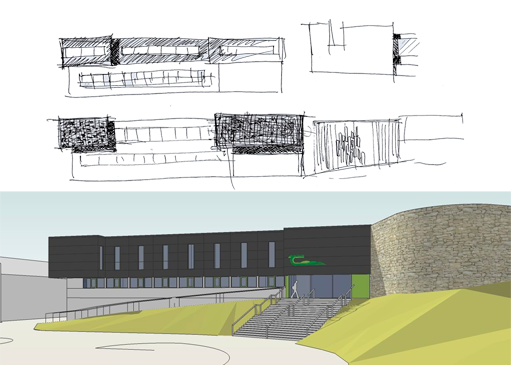

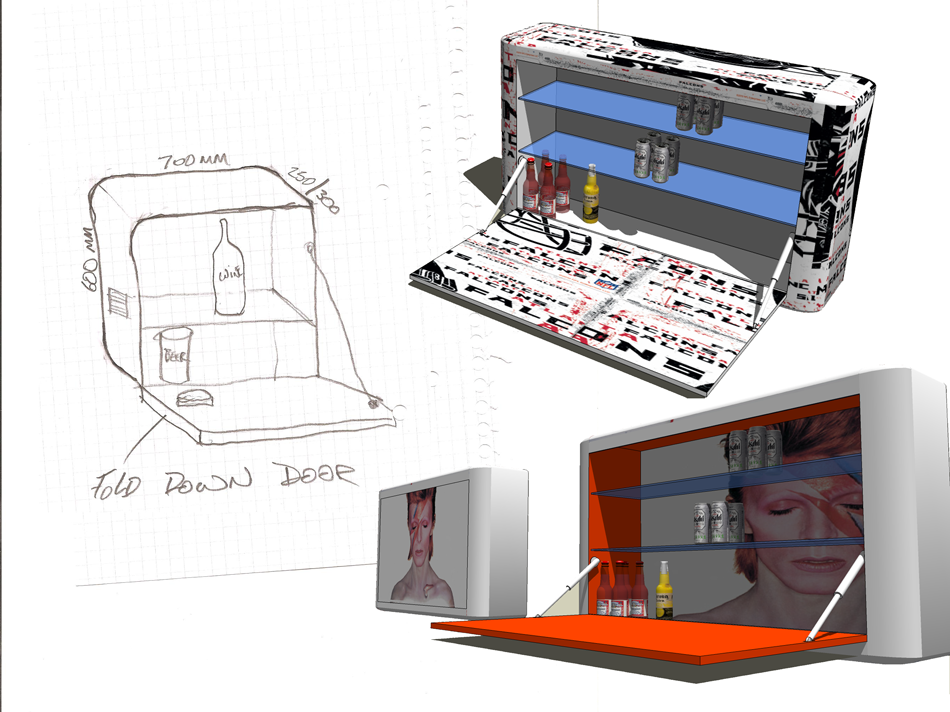

Delivering perfect CAD conversions, I convert your scanned paper drawings, hand-drawn, and almost any other medium into an accurate, editable CAD drawings; as if drawn by the designer, or architect themselves. CAD Conversion Services can also complete modification work in CAD to your hand drawn plans as well.

How do I work:

Drawings are not TRACED but are completely dimensionally accurate and editable CAD files. All conversions are drawn from scratch, NOT converted with inaccurate conversion programs.

I manually redraw the whole thing, using your layers, styles and conventions all with pinpoint accuracy and dimensioning (or mine if you don't have a preference). Finished work is an exact copy of the original, only in cad. Finished files are emailed as both a .dwg and a .pdf file formats. Unless you would like them in another format.
